Configure Order Model 650 Roll-Up Door

The Model 650 Mini Storage Door is durable, offering quick installation and ease of maintenance.

Standard features eliminate the need for extra options or upgrades.
Shipped with the latch, brackets and tensioner already in place.
Simply snap the brackets into the guides and the door is ready to stand.

NOTE: Select Only 1 Colour from Standard, Tier 1, Tier2, Tier 3 or Tier 4. (refer to colour chart below)

Select Model 650 Roll-Up Door

Your full name

Phone

Ship To Address

Standard Colour Reference Chart Below
SELECT ONLY ONE COLOUR

LEAVE --- or SELECT COLOUR

Specialty Colour (TIER 1)

LEAVE -- or SELECT COLOUR

Specialty Colour (TIER 2)

LEAVE --- or SELECT COLOUR

Specialty Colour (TIER 3)

LEAVE --- or SELECT COLOUR

Specialty Colour (TIER 4)

Leave --- or SELECT COLOUR

Opening Width Feet

Opening Width Inches

Opening Height Feet

Opening Height Inches

What Materials are you Mounting to?

So we can provide you with the best hardware and fasteners to mount to the specific frame.

Lock Latch Position

NOTE Not Advised when used in conjunction of any electric operation.

Electric Operator Motor

Commercial Use Only
Easyroller Electric Motor
-the dominator easyroller features a slim profile, reliability, security and convenience.
- the motor side is from the inside looking out. For use by qualified professionals only.

Insulation

Note: if selected the side draft will be included and 2" more headroom is required Combines energy efficiency with structural strength and durability with the added benefit of keeping thermal loss to an absolute minimum.

Brush Weather Stripping

2" Polypropylane Side Brush Seal with aluminum retainer mounts on the side of your frame work. Allows complete seal of the roll up door corrugation. Keeping out dust, air flow, pesky inset and rodents.

Reverse Curtain

Select Yes if the drum is to be mounted outside of the building and the door color needs to be on the same side as the drum. This option is only available with slide bolt latches on the drum side, at the bottom of the door. Reverse curtain doors cannot be insulated. IF ENTERED YES SELECT ADD HOOD YES

ADD Hood

Recommended for exterior applications. Includes end caps, support bracket and fasteners for assembly. Hoods over 12' wide are manufactured in 2 pieces. 20 guage glossy white hood for your selected opening. Hood requires extra 2" of headroom

Order Quantity

The Model 650 Mini Storage Door is designed and manufactured withdurability, quick installation and ease of maintenance in mind.

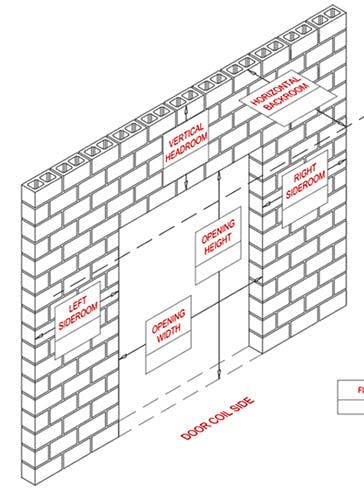

Measure your rough opening, the door will be custom made bigger to overlap your frame and your guiderails will mount on the face of your frame. That is why your need the headroom and sideroom requirements. The Model 650 at the selected height will require 15 1/2 inches of headroom above the opening and 4 inches of sideroom to either side for installation
